Accurate Zero: When it is selected, it is required to receive three signals
before going back to zero; if not selected, only one signal is required for going
zero.
Gap Clearance compensation: Used to set the interval compensation
between each independent figure. For example, the interval between two
figures is set to 10mm. If the mark is 10.1, then the gap compensation bit -
(10.1-10) =- 0.1.
Offset compensation ： When the graphics are stitched, it may cause
mismatch phenomenon. This parameter is used to eliminate the
misalignment.
Rotation Test：Test Rotary Axis.
Rotation Test
Rotation Axis
Working Diameter
Pulses
Invert
Corotation
Emergency Stop

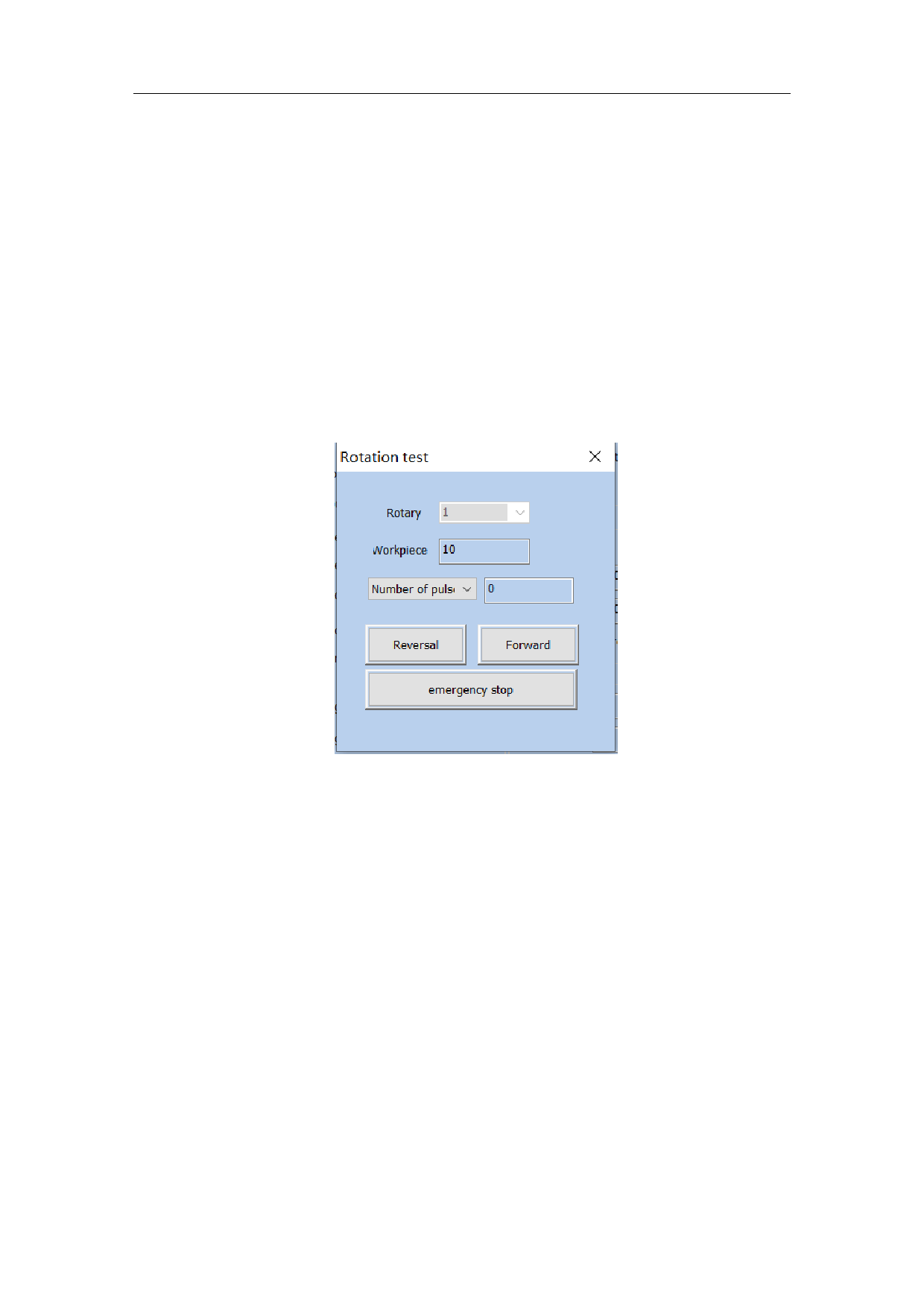

Fig.8-4 Rotate test
