Fig.8-3 Extended axis accuracy setting

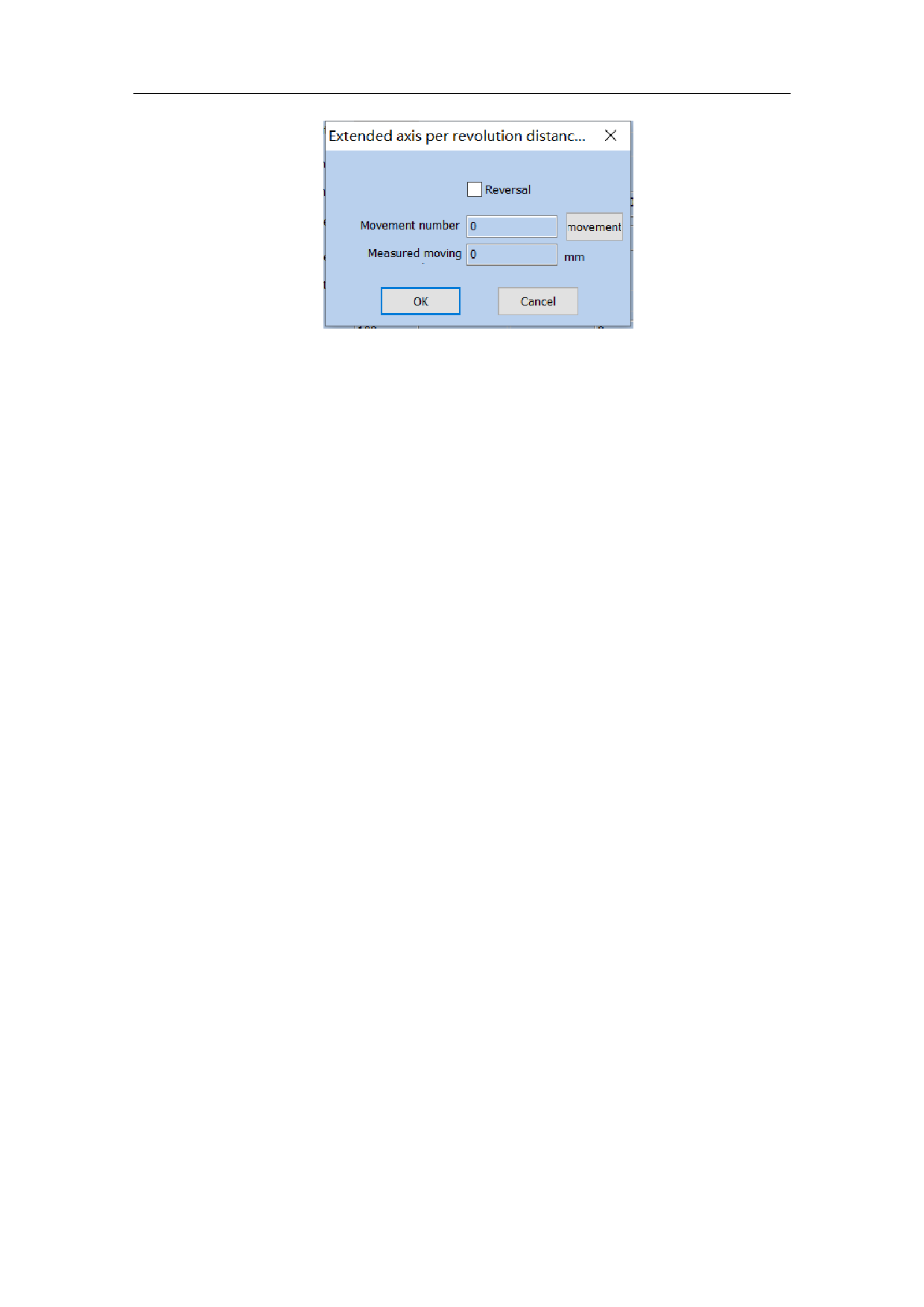

Distance Calculation for Extended Axis per Revolution
Reverse
Movement Revolutions
Movement
Actual Movement Distance
OK
Close
Min Coordinate: The smallest coordinate in which the extended axis can
move, in millimeters.
Maximum Coordinate: The maximum coordinate of the extended axis that
can be moved, in millimeters.
Min. Speed： The minimum rotary speed of expansion axis.
Min. Coordinate: The minimum speed of the extended axis energy
movement, unit pulse / second.
Max. Speed: The maximum rotary speed of expansion axis.
Max. Coordinate: The maximum speed of the extended axis, unit pulse /
second.
Acc. Time: Acceleration time needed when expansion axis moves from
minimum speed (starting speed of motor) to maximum speed.
Acceleration: The time, in milliseconds, required for the extended shaft to
accelerate from the minimum speed (starting speed of the motor) to operation.
Go to Start Position After Finished: When it is checked, the expansion axis
will go back to the initial position after finishing marking.
