4.14.
External
Axis
Encoder
moving
distance （ Lite version does not support this featu
re）
“”，“”， 4-49 ：
Select the “Extended Axis” command in the draw menu, and the
“Extended Axis” object will be displayed in the object list, as shown in Figure
4-49 below:

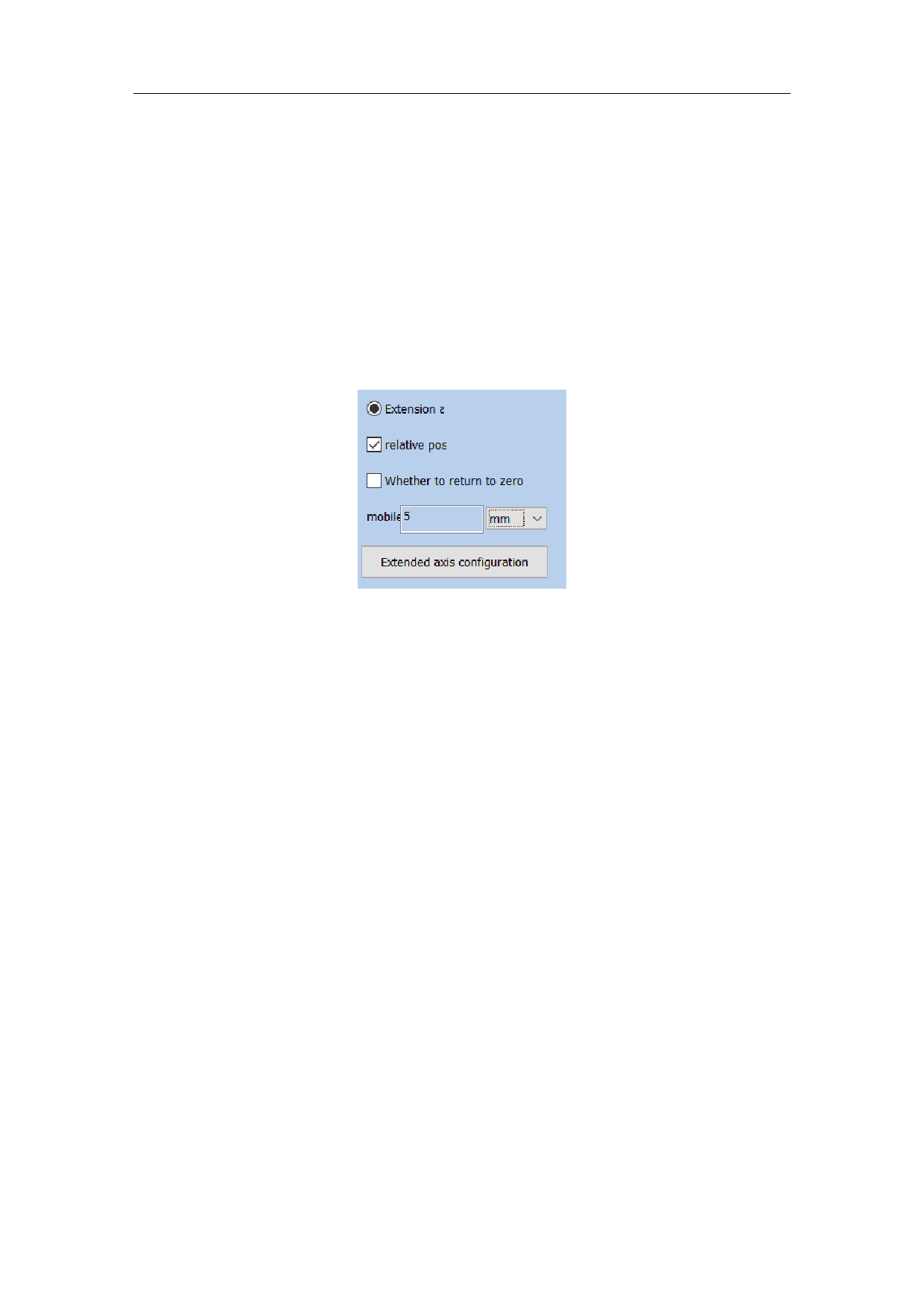

Fig.4-49 External Axis Encoder moving distance
1 Extended Axis 1
Relative Location
Whether to Return to Zero
Move
Millimeter
Pulse
Degree
Extended Axis Configuration
Correct axis origin: The current expansion axis go zero and reset
coordinates. The following example explains how to use this module.
Extended axis correction Zero: Check this to return the motor to zero
Relative position: It means the origin is used as the reference when the motor
