LMC2014 users' manual_Fiber

To a commonly used two dimension scanhead, connecting CLK, SYNC, four wires for

XChannel and Ychanne and the GND would be enough. We recommend a shielded twisted pair

for all digital signal.

2.1.3 CON2 ：DB25 Laser Control

CON2 socket can be connected to the DB25 connector through a pin to pin cable.

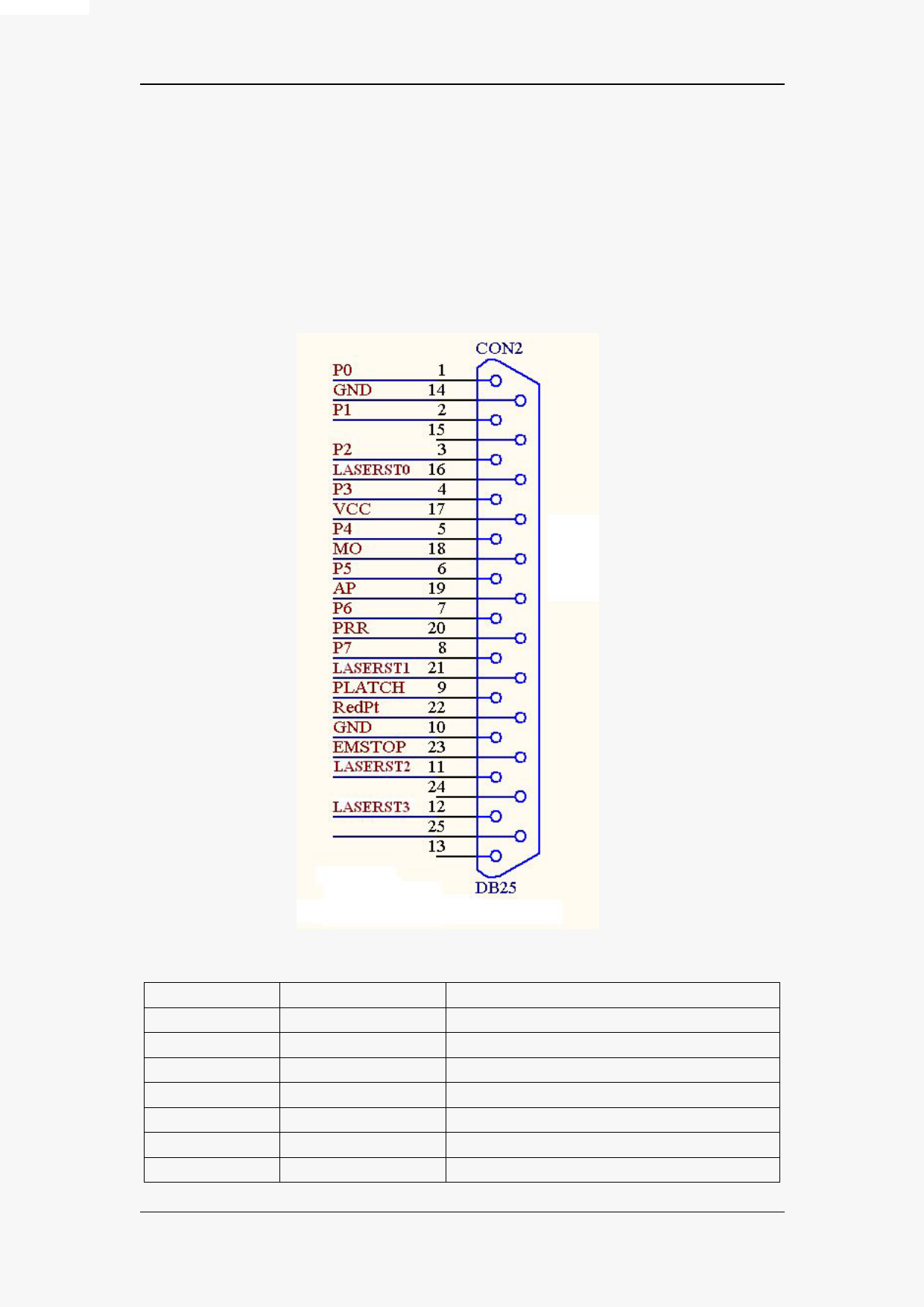

Pic 2_2 Pin definition for CON2

Pin No.

1——8

10， 14，

11，12，16，21

Signal

P0——P7

PLATCH

GND

LASERST0~3

VCC

Illustration

Laser power signal.TTL compatible

Power signal latch. TTL compatible.

The reference ground of the control board.

Alarm signal of Laser module

5V power output.

Main oscillator signal. TTL compatible.

Power amplifier signal. TTL compatible.
