CON4 pins 4 5 12 13 Name VCC GND function +5V power (Page 7 / 19) LMC2014 Fiber-Laser-Control-Board

LMC2014 users' manual_Fiber

CON4 pins

4， 5

12，13

Name

VCC

GND

function

+5V power supply.

Reference ground of the power supply.

2.1.2 CON1 ：DB15 scanhead control

The signals that control scanhead are digital, therefore can be connected to the digital

scanhead directly. Because the protocols that every manufacturer used are not always the same,

you need to conform which protocol is used. We also provide a D/A converter in the package. The

digital signal converted by which can be connected to a analog scanhead.

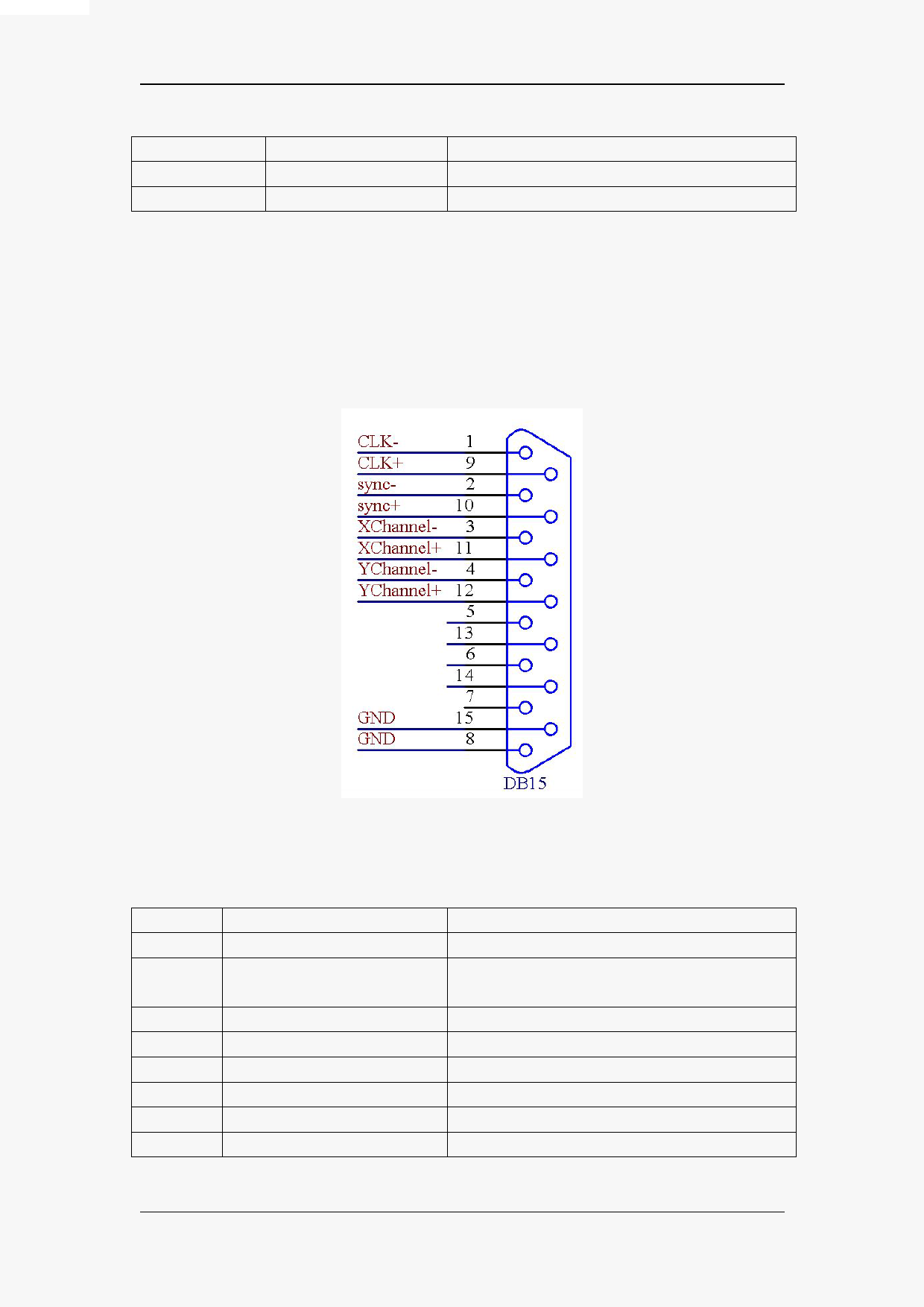

Fig 2- 1 pin definition of CON1

1，9

2，10

3，11

4，12

5，13

6，14，

8，15

Name

CLK－ / CLK＋

SYNC－ / SYNC＋

X Channel－ / X Channel＋

Y Channel－ / Y Channel＋

Z Channel－ / Z Channel＋

Status-/Status+

NULL

GND

Function

Clock signal－ / Clock signal＋

Synchronization signal － / Synchronization

signal＋

Scanhead signal X－ / Scanhead signal X＋

Scanhead signal Y－ / Scanhead signal Y＋

Scanhead signal Z－ / Scanhead signal Z＋

Reserved

Reference signal
