LMC2014 users' manual_Fiber

. Common Digital Module

1.1 How to identify a LMCFIBER board.

Place the board like the following picture. Then you will see a label marked MODEL ：

LMCFIBER2014-V4 and REV：20141022

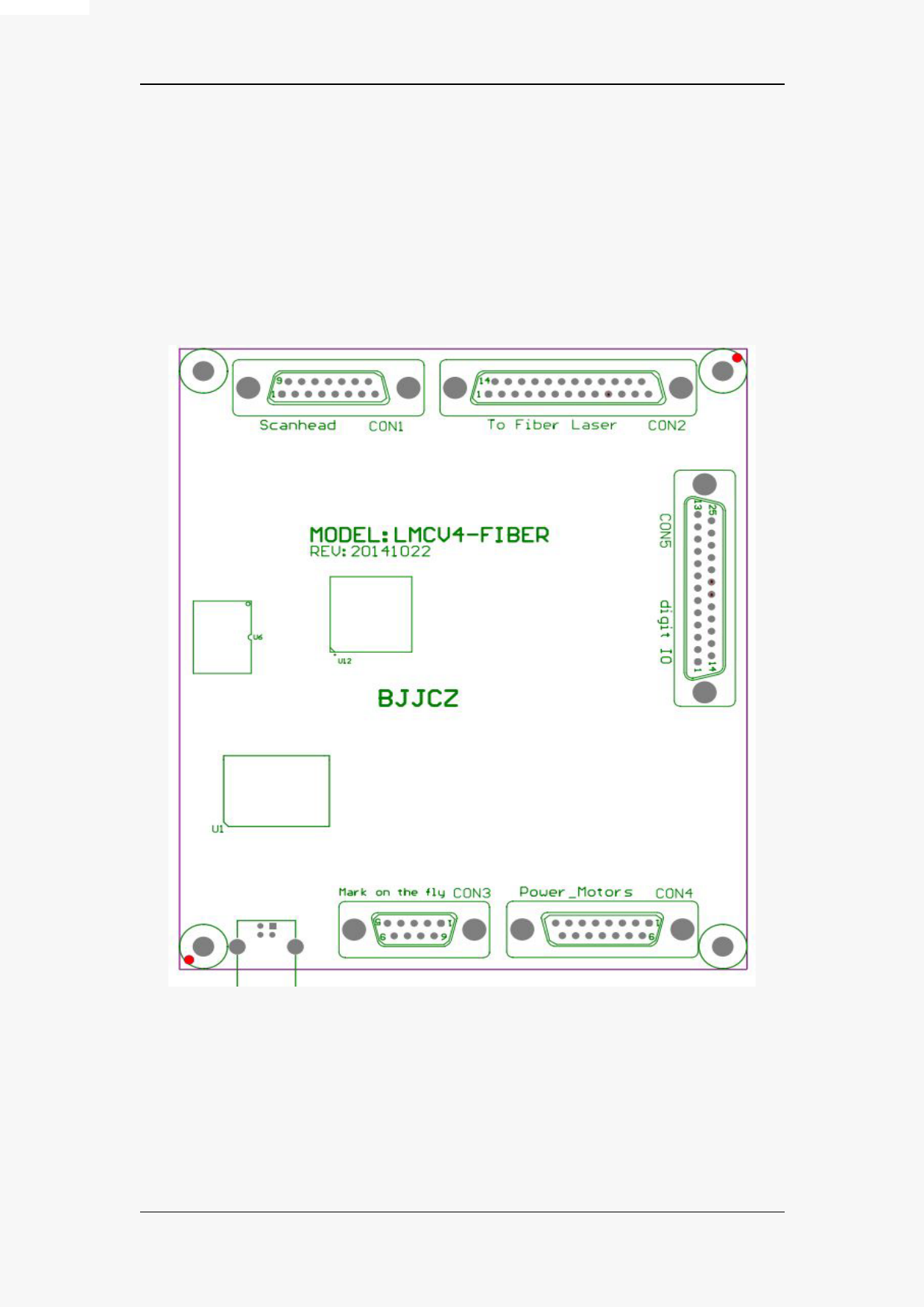

Fig 1- 1 LMC20104-V4 Fiber card illustration

In this picture,

CON1：scanhead control socket, DB15

CON2：laser control socket, DB25

CON3：on-the-fly marking interface to encoder, DB9

CON4：power supply and i/o, DB15

CON5：general i/os, DB25
