LMC2014 users' manual_Fiber
2.2 illustration on jumpers

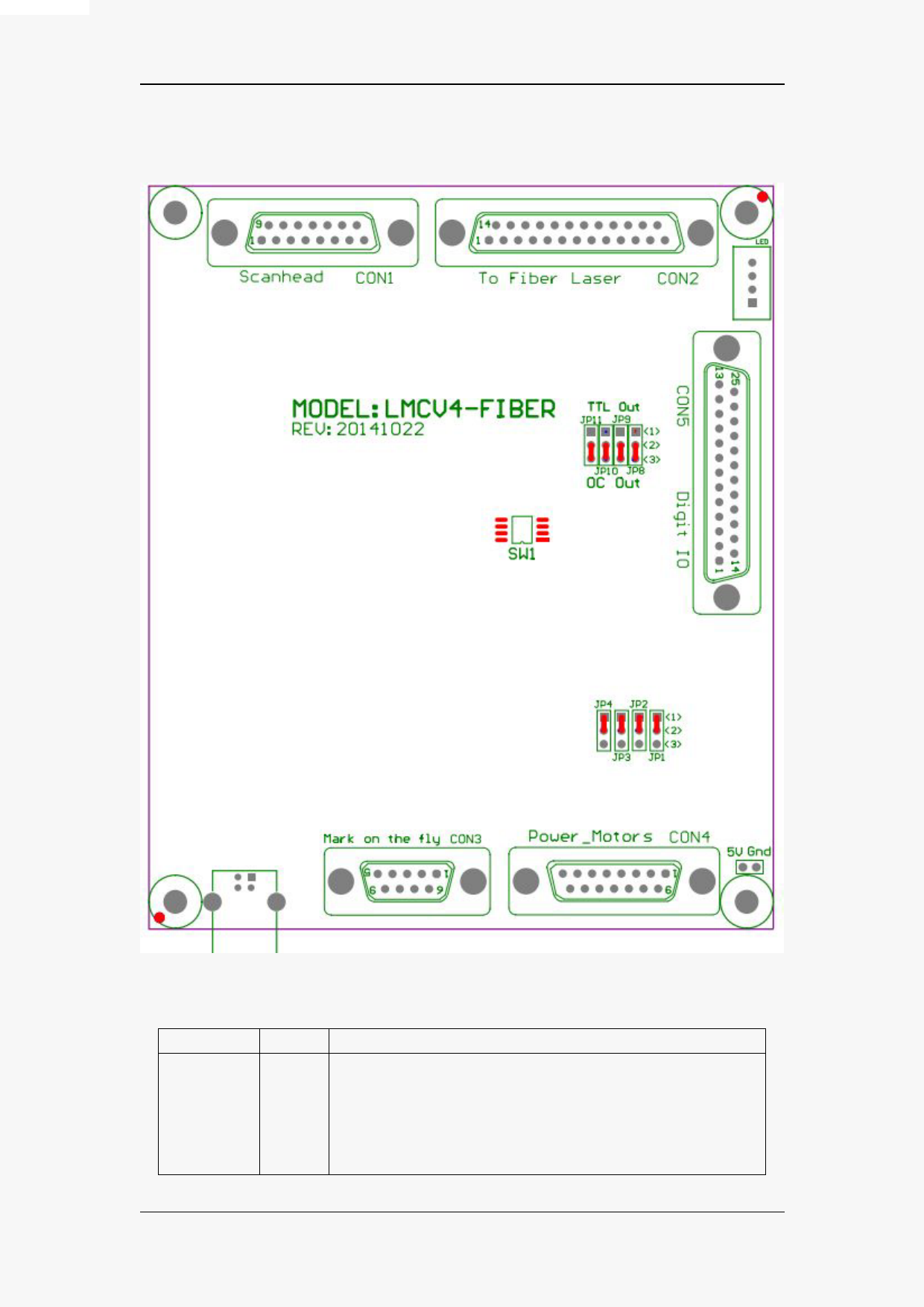

Fig 2-6 jumper illustration
pin
JP1，JP2
JP3，JP4
name
3
function
Direction/pulse signal setting of extend axes. JP1 and JP3 set
direction signals; JP2 and JP4 set pulse signals. JP1 and JP2
correspond to extend axis Y; JP3 and JP 4 correspond to extend
axis X. Short connecting JUMPER pin1&2 will make
direction/pulse signals differential outputs. Respectively
