LMC2014 users' manual_Fiber

2.1.5 CON4 ： DB15

control.

power supply and extension axis

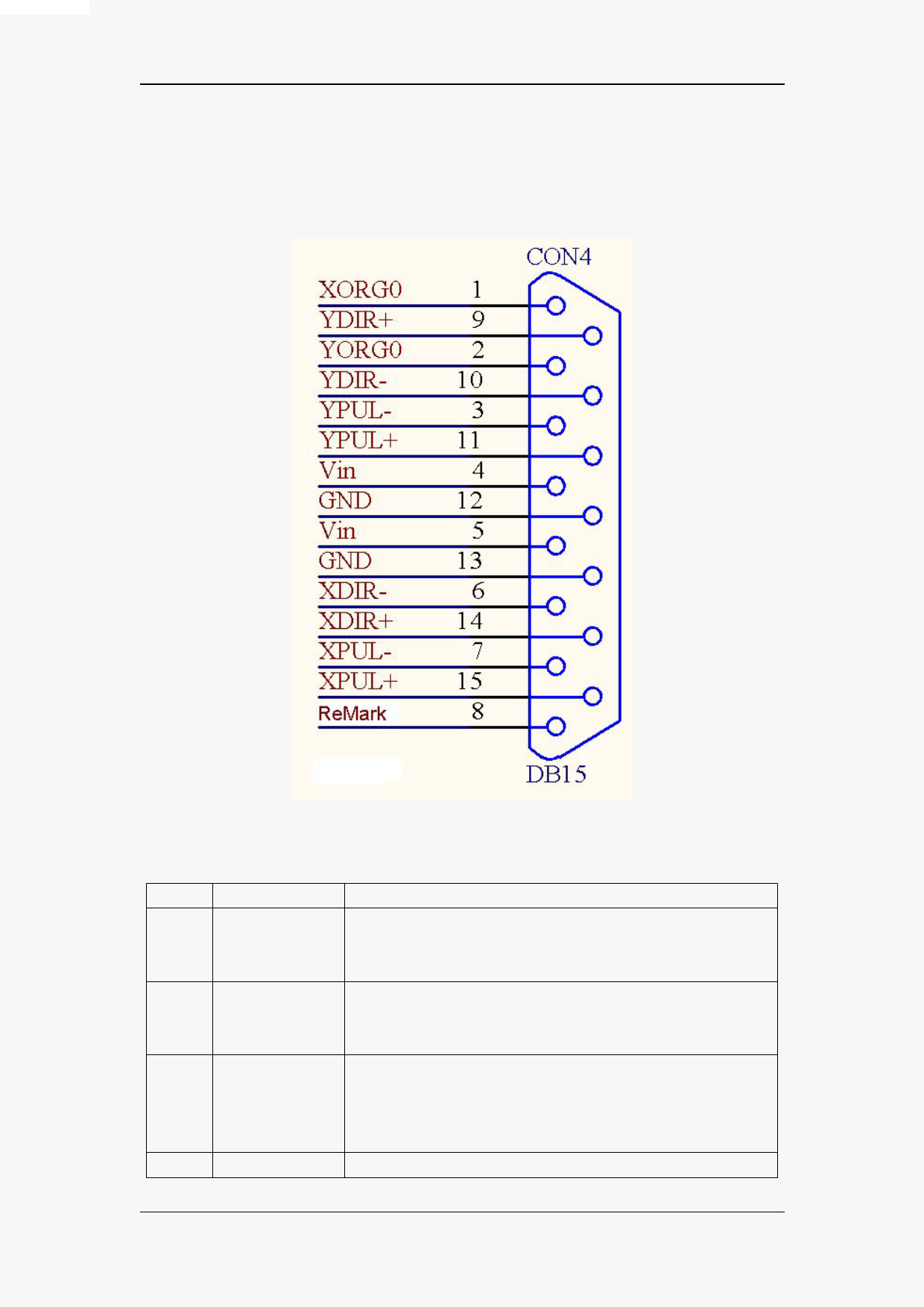

Fig 2- 4 CON4 pin definition

NAME

XORG0

YORG0

9，10 YDIR+/YDIR-

3，11 YPUL+/YPUL-

Function

The home signal of extension axis X. To use this pin just

connect it and GND to a switch. In software In14 represents

this pin.

The home signal of extension axis X. To use this pin just

connect it and GND to a switch. In software In14 represents

this pin.

Direction signal of extension axis Y (step motor or sever

motor). It can be either a differential output or a TTL

output(common anode).For common anode, use VCC and

YDIR+ signals, and VCC is anode signal.

Pulse signal of extension axis Y (step motor or sever motor). It
