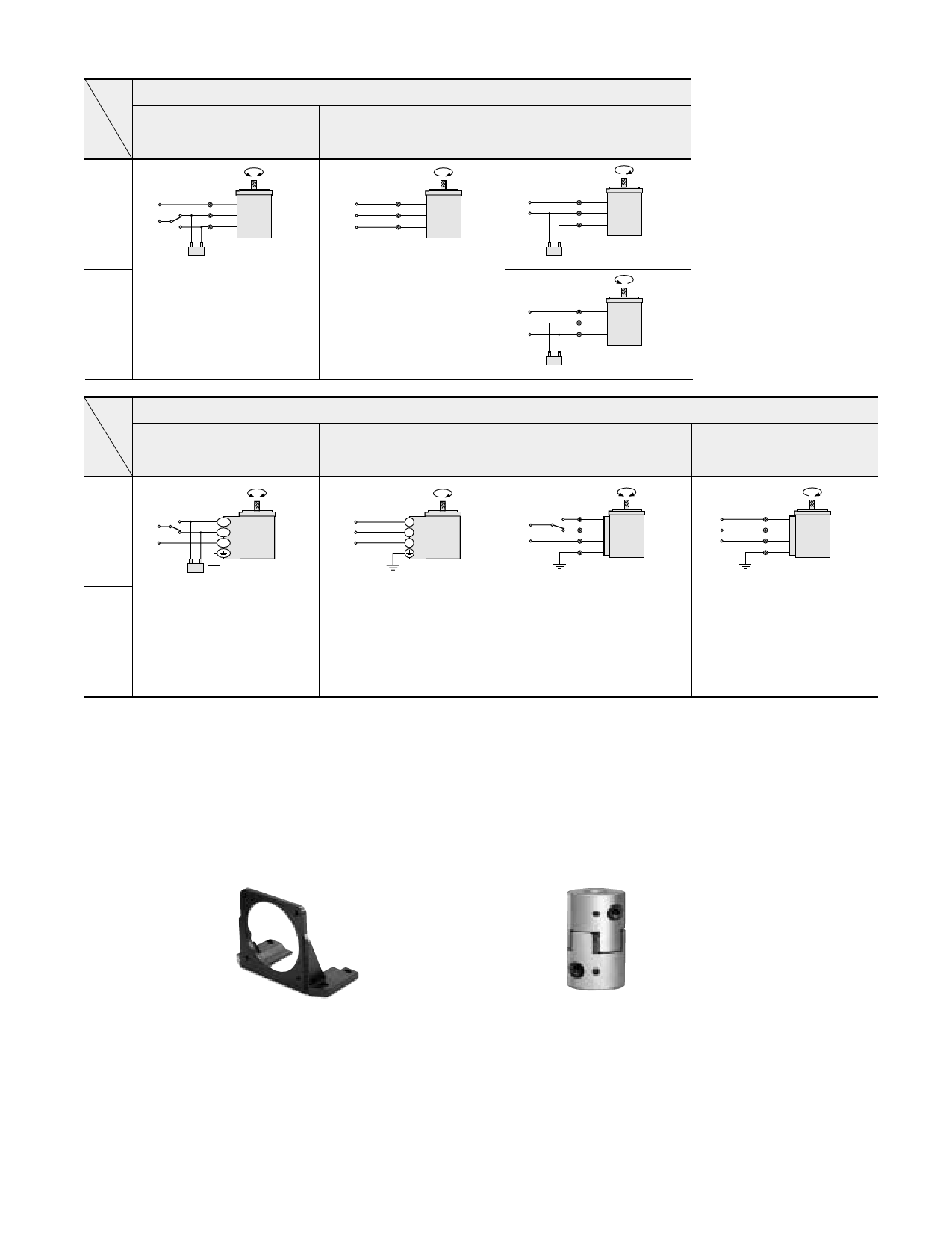

Ⅲ Wiring Diagrams The direction of motor rotation is as viewed from the shaft end of the motor.
Model
Lead Wire Type
Direction
5IK90GU-AWU
5IK90GU-CWE
5IK90GU-SW
5IK90GU-AFUL
CW
CCW
CW
Line CW
SW
CCW
Black
Red
White
Motor
Capacitor
Line
R (U)
S (V)
T (W)
CW
Red
White
Black
Motor
Line
CW
Black
Yellow
White
Motor
Capacitor
To rotate the motor in a clockwise
To change the rotation, change any
(CW) direction, flip switch SW to CW. two connections between U, V and W.
CCW
To rotate it in a counterclockwise
(CCW) direction, flip switch SW to
Line
CCW.
CCW
Black
Yellow
White
Motor
Capacitor
Model
Direction
Terminal Box Type
5IK90GU-AWTU
5IK90GU-CWTE
5IK90GU-SWT
Conduit Box Type
5IK90GU-FCH
5IK90GU-ECH
5IK90GU-SH
CW
CCW
SW CCW
Line CW
Capacitor
CCW
CW
Z2
U2
Motor
U1
Protective Earth
(P.E.)
Line
R
S
T
(U)
(V)
(W)
CW
U
V
Motor
W
Protective Earth
(P.E.)
CCW
CW
CCW White
Line SW CW
Red
Black
Green/Yellow
Motor
Protective Earth
(P.E.)
Line
U
V
W
CW
Red
White
Black
Green/Yellow
Motor
Protective Earth
(P.E.)
To rotate the motor in a clockwise
(CW) direction, flip switch SW to CW.
To rotate it in a counterclockwise
(CCW) direction, flip switch SW to
CCW.
To change the rotation, change any
two connections between U, V and W.
To rotate the motor in a clockwise
(CW) direction, flip switch SW to CW.
To rotate it in a counterclockwise
(CCW) direction, flip switch SW to
CCW.
To change the rotation, change any
two connections between U, V and W.
Change the direction of motor rotation only after bringing the motor to a stop.
If an attempt is made to change the direction of rotation while the motor is rotating, the motor may ignore the reversing command or change its direction of rotation after
some delay.
Ⅲ Accessories
ⅷMotor Mounting Brackets
Optional die-cast aluminum mounting brackets are available. They can be used
to install motors with or without gearheads. See page [A-266] for the
dimensions.
Model name SOL5UA
ⅷFlexible Coupling
Optional clamping couplings are available. See page [A-260] for the dimensions.
